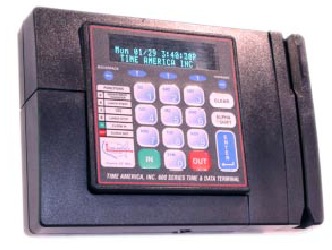

Product Description
The TA620 can record employee time, monitor productivity, control access, and maintain
inventory in a multitude of industries including restaurants, hospitality, banking, manufacturing, retail, hospitals and healthcare.
The economical TA620 functions as an easy-to-use collection point for employee information. It can be linked to a variety of existing computer networks within your organization to compliment the management information system you may currently have in place. It can also be used in conjunction with Time America’s time and attendance solutions.
Communication between the TA620 and your computer is accomplished by one of Time America’s polling and programming utilities or integrated time and attendance software.
TA620 can be programmed to prompt employees for data input, display employee messages, validate job costing entries, restrict employee punching via a schedule, regulate employee access to restricted areas, control a bell, allow supervisor punch look-up / editing, and much more.
The TA620 collects data automatically and transfers this information to your computer via RS232 serial, RS485 LAN, or dial-up modem communications.
The TA620 guarantees accurate, reliable input. Employees simply enter information through the TA620’s keypad, or by swiping a magnetic striped badge or a bar code.
Features
Eliminates the unavoidable errors associated with manually collected data
Features are easy to operate
Lockout data entry
Is user programmable
Links directly to your existing computer system
Offers a variety of options
Costs less than other automated data collection products
12 programmable function keys
Rings bells / open doors
Validate job costing information
Specifications
Dimensions: 9" x 6" x 2.5"
Memory: 64K EPROM, 128K RAM, Battery-Backed, upgradeable to 256k
Microprocessory: Zilog Z-180
Card reader: Track two magnetic card reader Optional bar code reader (visible or infrared)
Display: 40-Character (2X20) LCD alphanumeric, upper/lower case with special characters on a backlit display
Programming: ASCII-based, over communication ports
Communications: Bi-directional local communication via RS232 port RS485 network interface Optional 2400 baud internal modem
Printer Support:
Serial port (RS232 to RJ11) and standard 25 pin parallel port
Accessory Ports: One 6 pin port (supports wand, slot or gun reader, and signal control relay)
Power Requirements: Transformer: 120VAC, 60 Hz Terminal: 9 Volts AC or CD, 500 mA
Environmental Requirements: Operating Temperature: 0 to 40 C (32 to 104 F) Storage Temperature: -18 to 70 C (0 to 158 F) Humidity: 5% to 90%, noncondensing
Terminal Includes: Power transformer, Hardware Installation manual, wall mount, and configuration badge. The base terminal also includes Validation, Profile Lockouts, Messaging, Transaction Print, Bell Control, and Access Control (Bells and Access require a signal control relay).
Available Options
Signal Control Relay: With Time America’s signal control relay the TA530 can automatically ring bells, open doors, unlock entry/exit turnstiles, etc.
External Card Reader: External access control or data collection can be accomplished by connecting external card readers to any TA620 terminal. These card readers are available in magnetic stripe, bar code, or proximity badge formats.
Bar Code Wand: With the bar code wand, employees can easily input data from various sources.
Battery Backup: With the additional of the external battery backup, all terminal functions remain 100% operational in the even power is removed.
Specifications Data Input: Keypad Magnetic Stripe Badge, RF Prox., Optional Barcode Reader
Communication: TCP/IP Ethernet
Memory: 128Kb, Expandable to 256Kb- Batery-Backed
Display: 2 x 20 Character LCD
Dimensions: 9" x 6" x 2.5"
Case: High-Strength Injection-molded plastic
Options
TA620 Memory Expansion to 256K
Our Price: $79.30 |
|
TA620 Internal Bar Code Slot Reader Assembly (Visible)
Our Price: $185.90 |
|
TA620 Internal Bar Code Slot Reader Assembly (Infrared)
Our Price: $214.50 |
|
