Product Description

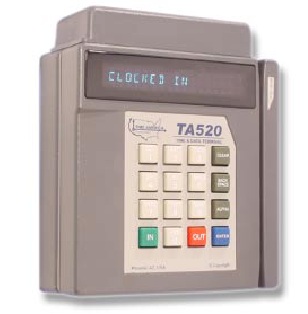

The TA520 Time and Data Terminal can record employee time, monitor productivity and maintain inventory in restaurants, hospitals and health care facilities, banks, manufacturing facilities, retail businesses and the hospitality industry.
The TA520 functions as a simple collection point for employee information. It can be linked to a variety of existing computer networks in your organization to complement the management information systems you already have in place.
By automating your data collection process, you eliminate the manpower and mistakes associates with conventional time cards thereby reducing payroll costs and payroll errors.
The TA520 automatically transfers data to your computer that in turn reports data by employee or by department, totals both hours and wages, determines labor costs and more.
The TA520 guarantees acurate, reliable input. Employees simply enter information through the TA520's keypad, or by swiping a magnetic-striped badge or bar code. Employee feedback is provided through audible accept/reject tones and displayed messages.
The TA520 is constructed of injection molded plastic that provides a tough, yet lightweight and attractive, covering. TA520's internal lithium battery keeps your data safe and the time and calendar accurate even if the power is out for weeks.
Features
Eliminates manually generated time card data
Costs less than other automated timekeeping products
Links directly to your existing computer system
Displays prompting messages
Features are easy to operate
Sturdy molded plastic construction
Lockout data entry
Offers a variety of options
12 programmable function keys
Rings bells / open doors
Validate job costing information
Technicxal Specifications
Dimensions: 5.5 x 6 x 1.5
Shipping Weight: 5 lbs.
Unit Color: Blue/Gray
Memory: 32K EPROM, 32K RAM,
Battery-Backed
Microprocessor: Z-80 CPU
Card reader: Track two magnetic card reader, Optional Track one card reader, Optional bar code
Display: 16-Character vacuum fluorescent alphanumeric with decimal point
Programming: ASCII-based, over communication port
Communications: Bi-directional local communication via RS232 port RS485 Network Interface Auto-answer 300/1200 baud modem (optional) External Ethernet (optional)
Power Requirements: Voltage: 120VAC, 60Hz Power consumption: 10W
Environmental Requirements: Operating Temperature: 0 to 40 C (32 to 104 F)
Storage Temperature: -18 to 70 C (0 to 158 F) Humidity: 5% to 90%, noncondensing.
Specifications
Data Input: Keypad Magnetic Stripe Badge, Optional Barcode Reader, Optional RF Prox
Communication: RS232 - Serial1200 kbps Modem, Optional TCP/IP Ethernet
Memory: 64Kb Batery-Backed
Display: 1 x 16 Vacuum Florescent
Dimensions: 5.6" x 6.0"
Case: High-Strength, Injection-Molded Plastic
Options
| |
|
|
| |
|
